※Product Introduction

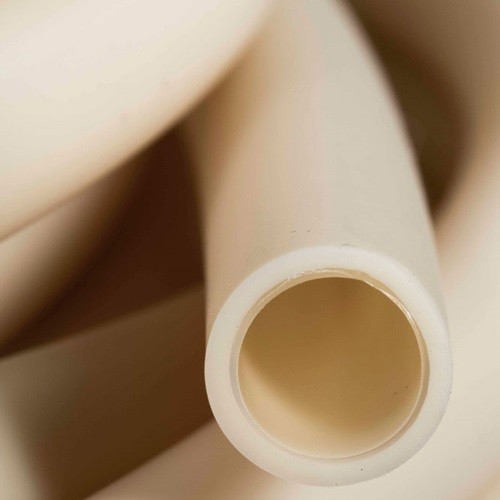

This tubing is a high-performance, co-extruded product specifically formulated to provide an ideal combination of chemical resistance and pump life. Its inert ultra-smooth, plasticizer-free bore resists the absorption/adsorption of aqueous fluids while theitsouter jacket provides long flex life in peristaltic pumps.It is an excellent choice for soap and detergent dispensing.
The inner liner oftubingsignificantly increases the chemical resistance and allows for a broader range of usability.It is virtually unaffected by acids, bases, salts, ketones and alcohols, allowing for use in a wide range of chemical applications without the use of multiple tubings. The outer jacketisextremely flexible, extending the pump life of the tubing and reducing downtime due to pump tubing failure.
※Typical Applications
- Soap and detergent dispensing
- Commercial laundry chemical dispensing
- Warewash chemical dispensing
- Facility cleaning chemical dispensing
※ Product Features
- Long flex life in peristaltic pumps
- Temperature range of -75°F to 165°F
- Superior chemical resistance
- Plasticizer-free bore
- Meets FDA criteria for food contact
- Resists absorption/adsorption of aqueous fluids
- Virtually unaffected by chemical sanitizers and cleaners
※Technical Parameters
Tubing Model |
Length (cm) |
Inner Diameter (mm) |
Wall Thickness (mm) |
Outer Diameter(mm) |
16# |
20 |
3.2 |
1.6 |
6.4 |
25# |
20 |
4.8 |
1.6 |
8 |
17# |
20 |
6.4 |
1.6 |
9.6 |
82# |
20 |
12.7 |
3.3 |
19.3 |
14# |
20 |
1.6 |
1.6 |
4.8 |
36# |
20 |
9.6 |
2.4 |
14.4 |
