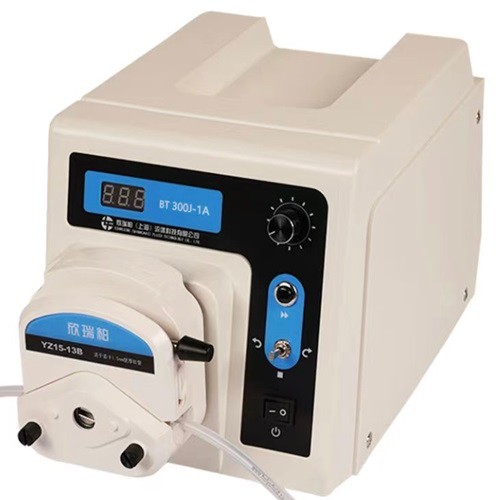

※Product Introduction
- Flow Range ≤ 0.06-1140ml/min
- Application: Accurate flow transmission in laboratories and industrial fields.
※ Product Features
- Drived by Stepper motor. Precise position control at low speed.
- Exquisite design. Top handle for users to easily move and carry the product.
- Speed can be adjusted manually or controlled via the external control interface
- Can be applied with the dispensing controllers to achieve complicated dispensing functions
- Speed range can be increased to 400rpm, while flow rate can be increased to 1520ml/min
- CE certificated
※Technical Parameters
- Speed range: 1-300 rpm, resolution 1rpm
- Running direction: CW (forward)/CCW(reverse)
- Adjustment method: Knob & button, supports external signal control and communication control
- Display: 3-digit LED
- External control function: start/stop control, direction control(CW/CCW), speed control ((0-5V, 0-10V, 0-10KHZ optional)
- Communication Interface: RS485
- Full speed function: One-touch control of full speed operation for filling, emptying, etc.
- Applicable power supply: AC 90V-260V, 50/60Hz
- Power: ≤ 50W
- Working environment: temperature 0℃ -40℃, relative humidity <80%
- Prime key for fast filling and emptying
- IP Rate: IP31
- Dimensions: 276×184×175 (length×width×height) mm
- Driver weight: 3.5Kg
Applicable Pump Head |
Number of Channels |
Applicable Tubing |
Single Channel Flow Range (ml/min) |
YZ15-13A |
1, 2 |
13# 14# 19# 16# 25# 17# 18# |
0.07-1140 |
YZ25-13A |
1, 2 |
15# 24# |
1.7-840 |
BZ15 |
1 |
14# 16# 25# 17# |
0.07-1140 |
BZ25 |
1 |
15# 24# |
1.7-780 |
