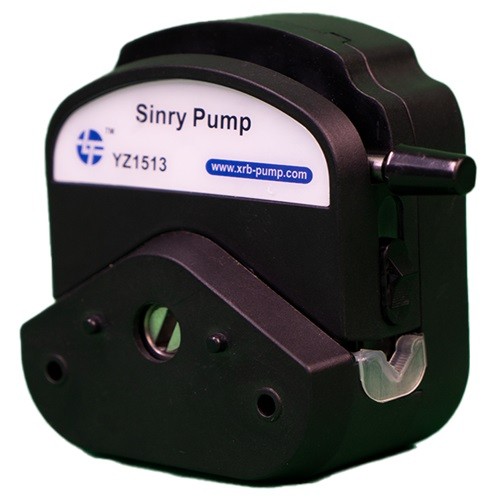

Pump Head YZ15/YZ25 Series

Product Introduction

※Product Features

- Install and change tubing easily and rapidly

- Automatic tubing retention

- Suitable for various tubing sizes

- The rollers adopt high quality materials and has good wearing property

※ Technical Specifications

- Max Flow Rate: 2200mL/min

- Max Speed: 600rpm

- Roller Material: stainless steel

- Number of Rollers : 3 , 6 , 5

- Applicable Tubing: 13# , 14# , 19# , 16# , 25# , 17# , 18# , 15# , 24#

- Pump head material:

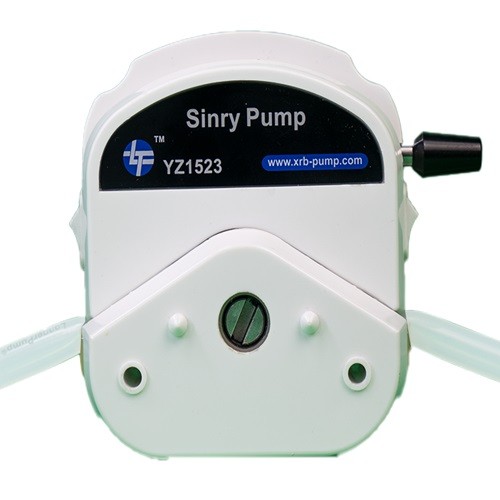

White ( PSF polysulfone: high temperature resistance, good resistance to inorganic acids and alkalis)

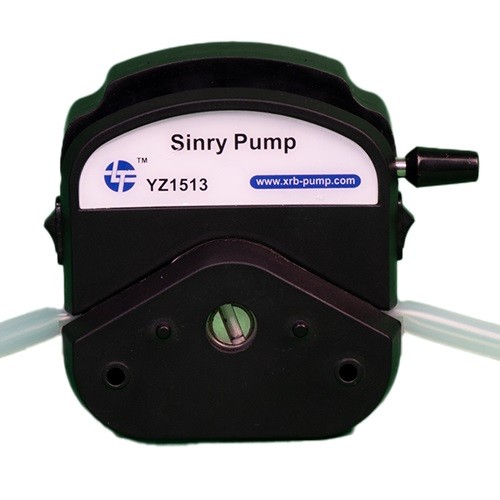

Black ( PPS polyphenylene sulfide, good chemical corrosion resistance, Long-term operation at 200 degrees Celsius)

※Other Parameters

Pump Head Model No.	Tubing	*Inner diameterwall thickness(mm)**	Speed (rpm)	Flow Range (ml/min)
YZ15xx	13#	0.8*1.6	≤600	34
	14#	1.6*1.6		142
	19#	2.4*1.6		251
	16#	3.2*1.6		470
	25#	4.8*1.6		980
	17#	6.4*1.6		1600
	18#	7.9*1.6		2200
YZ25xx	15#	4.8*2.4		1000
YZ25xx	twenty four#	6.4*2.4		1600
