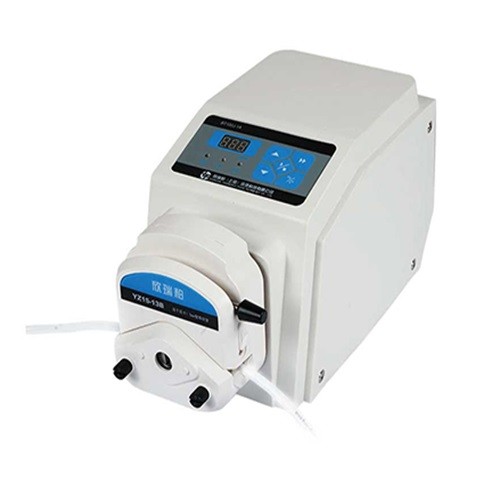

Basic Intelligent Peristaltic Pump BT100J-1A

Product Introduction

※Product Introduction

- Flow Range ≤ 0.0002-380ml/min

- Compact structure. Food-grade and sanitary ABS Casing. Durable and easy to clean.

- Support RS485/Modbus communication protocol. Easy to adjust, test and apply. The protocol can also be customized.

- Power off save: it can automatically save the control parameters when the last power fails.

- Flow calibration function

- This product is the most commonly used basic model and is widely used in medicine, food, testing institutions, universities and laboratories

- CE certificated

※Technical Parameters

- Speed Range: 0.1-100rpm, resolution as 0.1rpm

- Running Direction: CW (green light) / CCW (blue light)

- Display: Three-digit LED digital

- External control function: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA0-10KHz)

- Communication Protocol: RS485

- Applicable Power Supply: AC 90-260V, 50/60Hz

- Max Power: 30W

- Working Environment: 0-40℃, relative humidity <80%

- Weight: 2.5kg

- Dimensions: 245x155x 160 (L x W x H) mm

- IP Rating: IP31

※Other Parameters

Applicable Pump Head	Channels	Applicable Tubing	Flow Range (single channel) (ml/min)
YZ15-13A	1/2	13#, 14#, 16#, 17#, 18#, 19#, 25#	0.07-380
YZ25-13A	1/2	15#, 24#	0.2-270
DG-(6 rollers)	1/2/4	ID ≤ 3.17mm Wall Thickness 0.8-1mm	0.0002-48
DG-(10 rollers)	1/2/4	ID ≤ 3.17mm Wall Thickness 0.8-1mm	0.00025-32
BZ15	1	14#, 16#, 17#, 18#, 25#	380
BZ25	1	15#, 24#	250
DMD15-2A	1	213#, 214#, 216#, 219#, 2*25#	350
