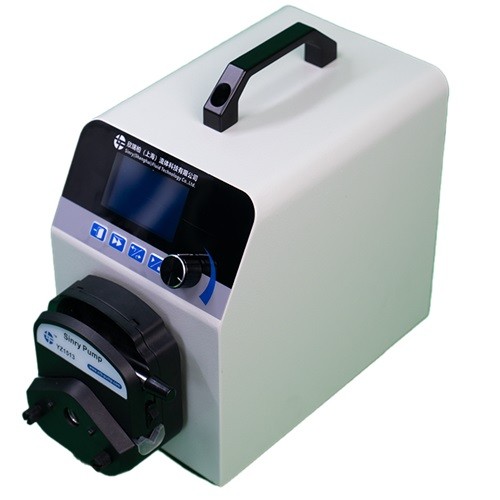

Dispensing Peristaltic Pump BF Series

Product Item : BF100-1A / BF300-1A / BF600-1A
Category： Peristaltic Pump
dispensing type
Product description：fluid transfer pump, pharmacy dispensing pump, metal peristaltic pump
INQUIRY EMAIL

Product Introduction

Product Specifications

※Applications

- Suitable for laboratorial and industrial application

※Product Introduction

Dispensing peristaltic pump BF series provide flow rates from 20mL/min to 2200mL/min. The speed could be controlled throughcontrol panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily.

CE certified.

※ Product Features

- Drived by a stepper motor. Accurate rotate speed

- Adapt to multiple pump heads. Various pump heads such as YZ, DG, and BZ series pump heads can be installed.

- Rotate speed, start/stop status and rotation direction of the peristaltic pumps can be controlled externally

- Various external control interfaces: analog speed regulation, IO control, etc.

- Prime key for fast filling and emptying

- Metal housing. Refined looking and corrosion-resistant

- Support RS485/Modbus communication protocol. Easy to adjust, test and apply. The protocol can also be customized.

- Power off memory: it can automatically save the control parameters when the last power fails.

※Technical Parameters

	BF100-1A	BF300-1A	BF600-1A
Speed Range	0.1-100rpm	0.1-300rpm	0.1-600rpm
Flow Rate	0.07-380ml/min	0.07-1140ml/min	0.07-2200ml/min
Speed Resolution	0.1rpm
Speed Control	knob& membranekeypad; support external signal control and communication control
CommunicationProtocol	RS485 /Modbus
External Control	Start/stop, speed control,and cw/ccw control
Display	GraphicLCD
Display Language	Chinese/English
Operation Mode	Flowmode, dispensingmode, user-defined mode
Back Suction Function	prevent dripping by setting the suction angle
Power Supply	AC 90~260V 50Hz/60Hz
Power Cord	National standard 3*0.5, three-core power cord, 250V/6A, 1.5 meters
Operating Condition	Temperature 0-40 ℃ , without condensation whilehumidity <80%
IP Rating	IP31*(customizable)
Insulation Rating	1000V 1 minute greater than 100MΩ*(customizable)
Dielectric Strength	More than 1000V
Item Size (L x W x H)	230150200(mm)
Net weight	4.13kg

※Other Parameters

Pump Head	Tubing	Max. FlowRate（ml/min）
Pump Head	Tubing	BF100-1A	BF300-1A	BF600-1A
YZ15xx	13#, 14#, 19#, 16#, 25#, 17#, 18#	380	1100	2200
YZ25xx	15#, 24#	266	800	1600
YZ1125	15#, 24#, 35#, 36#	500	1500	3000
BMD15-13-B	2x13#,2x14#,2x19#, 2x16#, 2x25#	375	1035	2070
BZ15-13-A	14#	22	75	150
BZ15-13-B	16#	80	230	460
BZ15-13-C	25#	150	480	960
BZ15-13-D	17#	270	800	1600
BZ25-13-B	24#	250	800	1600
DG15-24	16#, 25#, 17#	300(single channel)	900(single channel)	1800(single channel)
DG15-28	13#, 14#,ID ≤ 3.17mm, wall thickness=1mm	75 (single channel, recommendedrotatespeed ≤ 100rpm)
DG-(1/2/4/6/8) 6 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	48(single channel, recommendedrotatespeed ≤ 100rpm)
DG-(1/2/4) 10 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	32 (single channel, recommendedrotatespeed ≤ 100rpm)
