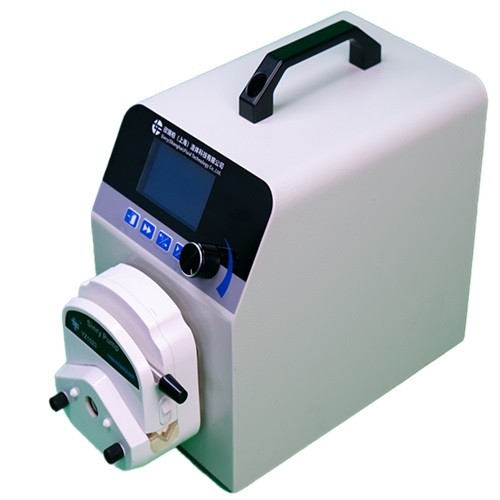

Flow Type Peristaltic Pump BL Series

Product Item : BL100-1A / BL300-1A / BL600-1A
Category： Peristaltic Pump
Flow Type
Applicable to various pump head
Product description：fluid transfer pump, pharmacy dispensing pump, metal peristaltic pump
INQUIRY EMAIL

Product Introduction

Product Specifications

※Product Instruction

Flow rate type peristaltic pump BL series are mainly applied for lab and light industry. The display can switch between flow rates and rpm . With calibration capability for more accurate flow rate.

Graphic LCD with specially designed operation screen displays parameters and running status, which provides enough information for correct operation.

CE certified

※Product Features

- Drived by a stepper motor. Accurate rotate speed.

- Compact structure to save space and high-efficiency performance

- Suitable for variable pump heads

- Rotate speed, start/stop status and rotation direction of the peristaltic pumps can be controlled externally

- Various external control interfaces: analog speed regulation, IO control, etc.

- Prime key for fast filling and emptying

- Metal housing. Refined looking and corrosion-resistant

- Support RS485/Modbus communication protocol. Easy to adjust, test and apply. The protocol can also be customized.

- Power off save: it can automatically save the control parameters when the last power fails.

- Flow calibration function

※Technical Parameters

	BL100-1A	BL300-1A	BL600-1A
Speed Range	0.1-100rpm	0.1-300rpm	0.1-600rpm
Flow Rate	0.07-380ml/min	0.07-1140ml/min	0.07-2200ml/min
Speed Resolution	0.1rpm
Speed Control	knob & membrane keypad; external signal and communication protocol control
Communication Protocol	RS485 / Modbus
External Control	Start/stop, speed control, and cw/ccw control
Display	Graphic LCD
Display Language	Chinese/English
Operation Mode	Flow mode
Back Suction Function	prevent dripping by setting the suction angle
Power Supply	AC 90~260V 50Hz/60Hz
Power Cord	National standard 3*0.5, three-core power cord, 250V/6A, 1.5 meters
Operating Condition	Temperature 0-40 ℃ , no frosting while humidity <80%
IP Rating	IP31 ^*(customizable)
Insulation Rating	1000V 1 minute greater than 100MΩ ^*(customizable)
Dielectric Strength	More than 1000V
Item Size (L x W x H)	230150200(mm)
Net weight	4.13kg

※ Applicable Pump Connector

Pump Head	Tubing	Max. Flow Rate（ml/min）
Pump Head	Tubing	BL100-1A	BL300-1A	BL600-1A
YZ1515x,YZll15	13#, 14#, 19#, 16#, 25#, 17#, 18#	380	1140	2200
YZ2515x	15#, 24#	270	840	1600
YZll25	15#, 24#, 35#, 36#	500	1500	3000
BMD15-13-B	2x13#,2x14#,2x19#, 2x16#, 2x25#	375	1035	2070
BZ15-13-A	14#	22	75	150
BZ15-13-B	16#	80	230	460
BZ15-13-C	25#	150	480	960
BZ15-13-D	17#	270	800	1600
BZ25-13-B	24#	250	800	1600
DG15-24	16#, 25#, 17#	300(single channel)	900(single channel)	1800(single channel)
DG15-28	13#, 14#, ID ≤ 3.17mm, wall thickness=1mm	75 (single channel, recommended rotate speed ≤ 100rpm)
DG-(1/2/4) 6 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	48 (single channel, recommended rotate speed ≤ 100rpm)
DG-(1/2/4) 10 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	32 (single channel, recommended rotate speed ≤ 100rpm)
