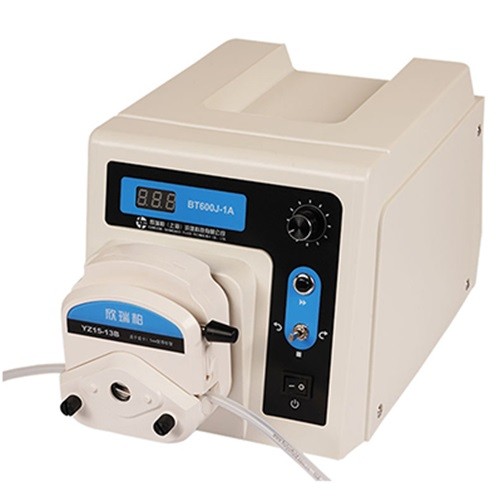

※Product Features
- Flow Range ≤ 0.06-2200ml/min
- Drived by a stepper motor. Accurate rotate speed. Long service life
- Compact structure to save space. A handle on the top to easy move.
- Suitable for variable pump heads
- Prime key for fast filling and emptying
- Power off save: it can automatically save the control parameters when the last power fails.
- Flow calibration function.
- Can be applied together with the filling controller FK-1A to realize the filling function.
- Widely used in medicine, food, testing institutions, universities and laboratories
- CE certificated
※Technical Parameters
- Speed Range: 1-600 rpm, CW /CCW
- Speed Resolution: 1 rpm
- Control Mode: Knob & button. Supports external signal control and communication control
- Display: 3-digit LED
- External Control Function: start-stop control, direction control, speed control ((0-5V, 0-10V, 0-10KHZ optional)
- Communication Interface: RS485
- Power-off Memory: After power-on, the system can continue to work according to the state before power-off
- Prime key for fast filling and emptying
- Dimensions: 290×210×186mm (L×W×H)
- Applicable Power Supply: AC 90V-260V
- Power: ≤ 100W
- Working Environment: temperature as 0℃ -40℃; relative humidity <80%
- IP Rating: IP31
- Motor Weight: 3.8Kg
※Other Parameters
Applicable Pump Head |
Channels |
Applicable Tubing |
Flow Range (Single channel) (ml/min) |
YZ15-13A |
1/2 |
13#, 14#, 16#, 17#, 18#, 19#, 25# |
0.06-2200 |
YZ25-13A |
1/2 |
15#, 24# |
1.7-1600 |
BZ15 |
1 |
14#, 16#, 17#, 25# |
0.06-2200 |
BZ25 |
1 |
15#, 24# |
1.7-1600 |
