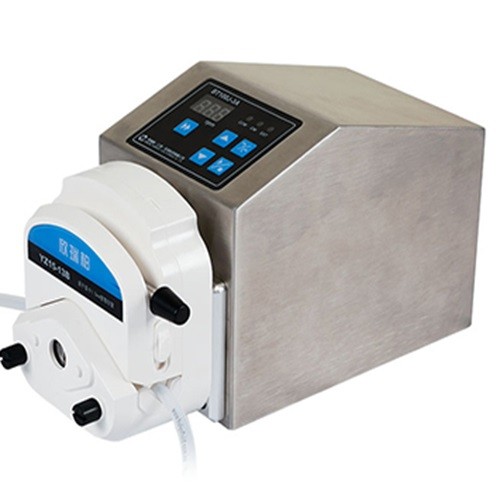

Stainless Steel Housing Peristaltic Pump BT100J-3A

Product Introduction

※Product Introduction

- Flow Range ≤ 0.0002-380ml/min

- Application: suitable for accurate transmission of flow in laboratories and industrial fields.

- Metal housing isdurableand can be used in harsh industrial production environments.

- CE certificated

※Technical Parameters

- Speed Range: 0.1-100rpm

- Speed Resolution: 0.1rpm

- Adjustment Method: membrane button

- Display: 3-digit LED

- External Control Function: start/stop control, direction control (CW/CCW), speed control (0-5V, 0-10V, 4-20mA, 0-10KHz optional)

- Power Supply: AC 220V±10%, 50Hz/60Hz

- Working Environment: ambient temperature 0-40℃, relative humidity < 80%

- IP Rating: IP55

- Dimensions: 190×110×140 (L×W×H) mm

- Weight: 2.8kg

※Other Parameters

Model No.	Applicable Tubing	Flow Range
YZ15-13A	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.07-380ml/min
YZ25-13A	15#、24#	0.2-270ml/min
DG-(1-2)A 6 rollers	Wall thickness: 0.8-1mm Inner diameter: < 3.17mm	0.00025-48ml/min (single channel)
DG-(1-2)B 10 Roller	Wall thickness: 0.8-1mm Inner diameter: < 3.17mm	0.0002-32ml/min (dual channel)
