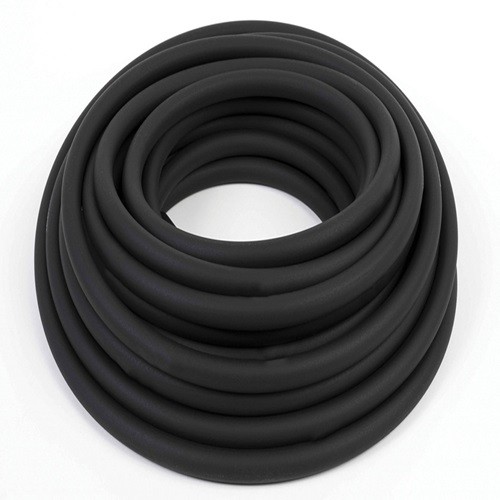

  •  A-60-G Saint-Gobain Tubing
  •  A-60-G Saint-Gobain Tubing
 A-60-G Saint-Gobain Tubing  A-60-G Saint-Gobain Tubing

A-60-G Saint-Gobain Tubing

Product Introduction

Product Specifications

※Product Introduction

    Specially formulated for chemical dispensing,this tubing outperforms neoprene, EPDM and other general-purpose tubingin repeated tests and applications. It will not weaken or crack after years of exposure to heat and ozone, providing longer peristaltic pump life in industrial and cleaning-chemical dispensing applications.

    Engineered for outstanding performance and on-the-job reliability, Tygon A-60-G tubing handles temperatures ranging from -75°F (-60°C) to 275°F (135°C), allowing the use of one material within a broad range of temperatures. It is heat sealable and can be joined without fittings. It also offers excellent resistance to inorganic fluids (acids and bases).

    This tubing is available in standard vacuum sizes that will withstand a full vacuum (29.9" [759 mm] of mercury) at 73°F (23°C). Unlike typical rubber vacuum tubing,thistubing resists the cracking and aging that are frequent causes of vacuum tubing failure.


※ Product Features

- Superior weathering

- Abrasion resistant

- Outstanding flexural fatigue resistance

- Wide temperature range (-75°F to 275°F)

- Low gas permeability versus rubber tubing

- Ozone (300 pphm) and UV light resistant

- Heat sealable and can be joined without fittings

- Excellent resistance to inorganic fluids (acids and bases).









Technical Parameters

A-60-G Hose Model

Length (cm)

Inner diameter (mm)

Wall Thickness (mm)

Outer diameter(mm)

14#

20

1.6

1.6

4.8

16#

20

3.2

1.6

6.4

25#

20

4.8

1.6

8

24#

20

6.4

2.4

11.2

73#

20

9.6

3.2

16
