※ Product Introduction
This is a classical model, and widely used in laboratories and many other general fields such as common fluid transmission, pharmacy packaging, fine chemicals, water treatment and environmental protection engineering, acid and alkali replenishment and defoaming in industrial fermentation systems, etc.
※ Product Features
- Drived by a stepper motor. High precision and stable operation.
- 3-digit LED displays. Intuitive User Interface.
- Speed, direction (CW/CCW), start/stop can be controlled by membrane keypad.
- Prime key for fast filling and emptying
- Power off save: it can automatically save the control parameters when the last power fails.
- Comunication Protocol: RS485
- Can be assorted with the filling controller, foot switch, external control module and other accessories to realize small-lot filling and distribution.
- IP Rating: IP31
- CE certificated
·
※Technical Parameters
|

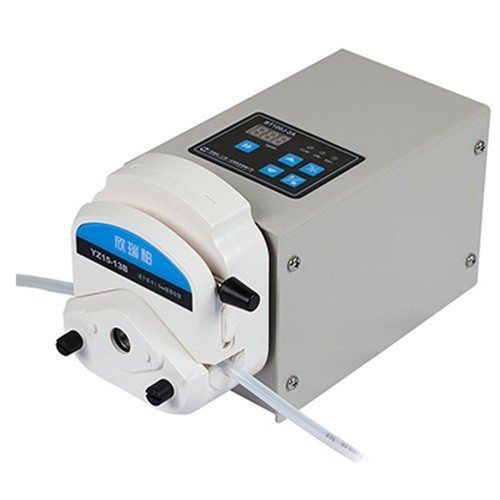

BT100J-2A |
|
|
Flow Range |
< 380ml/min |
|
Rotation Range |
0.1-100rpm (CW/CCW) |
|
Speed Resolution |
0.1rpm |
|
Adjustment Method |
Membrane keypad |
|
Display |
3-digit LED |
|
External Control Function |
Start/stop, direction control (CW/CCW), speed control (0-5V, 0-10V, 4-20mA, 0-10KHz optional) |
|
Power-off Memory |
After power on, the system can continue to work according to the status before power off. |
|
Full Speed Capability |
One prime key for full-speed operation, filling, emptying, etc. |
