  • New SS Industry Peristaltic Pump YT600S-1A

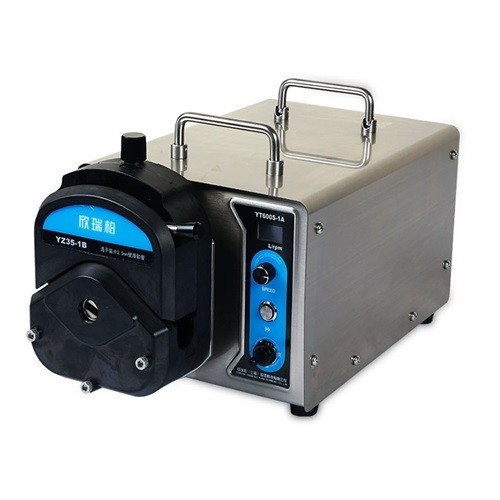

New SS Industry Peristaltic Pump YT600S-1A

  • Product Item : YT600S-1A
  • Category: Peristaltic Pump
  • Large flow rate
  • Industry peristaltic pump
  • Product description:fluid transfer pump, industry dispensing pump, metal peristaltic pump
  • INQUIRY   EMAIL

Product Introduction

Product Specifications

Product Introduction

- Flow range ≤ 13000 ml/min

- Driven by a stepper motor. Large torque output. Strong expansibility

- Wide Flow Range: ≤13000ml/min

- Stainless steel casing. Anti-corrosion and easy to clean. Compact structure and light weight.

- Support Modbus / RS485 communication protocol.

- Equipped with a single-channel pump head, it can be used in conjunction with a filling controller to provide cycle control and timed stop functions.

- Suitable for pharmacy packaging, laboratory, analytical instrument and industry.

- CE certificated


Technical Parameters

- Speed Range: 1-650rpm, CW/CCW

- Control Method: Knob & button. Supports external signal control

- Rotate speed is regulated by the digital knob

- External Control: start-stop control, direction (CW/CCW) control, speed control (4-20mA, 0-5V, 0-10V)

- Applicable Power Supply: AC 220 ±10%

- Power: ≤ 150W

- Working Environment Temperature: 0-40℃

- Relative Humidity: < 80%

- Dimensions: 360x240x200 (L x W x H) mm

- IP Rating: IP31

- Motor Weight: 15.22Kg


※Other Parameters

Applicable Pump Head

Speed Range (rpm)

Channels

Applicable Tubing

Flow Range (Single Channel) (ml/min)

YZ35

1~600

1,2

73#, 82#

≤13000

KZ35
